Using Probe

How to Connect

The Coffee Electronics CEDP1100 uses two main connections for operation: a USB-A connector for the required 5 V power supply, and a signal output connector for instruments with SMA inputs and 50 Ω impedance.

The probe is compatible with oscilloscopes, spectrum analyzers, vector network analyzers, and Coffee Electronics eLABin1 instruments. For more information about eLABin1, visit:

www.coffee-electronics.com/elabin1

As shown in the examples below , the probe can be directly connected through SMA RF inputs. Instruments using BNC or TNC connectors may require an adapter.

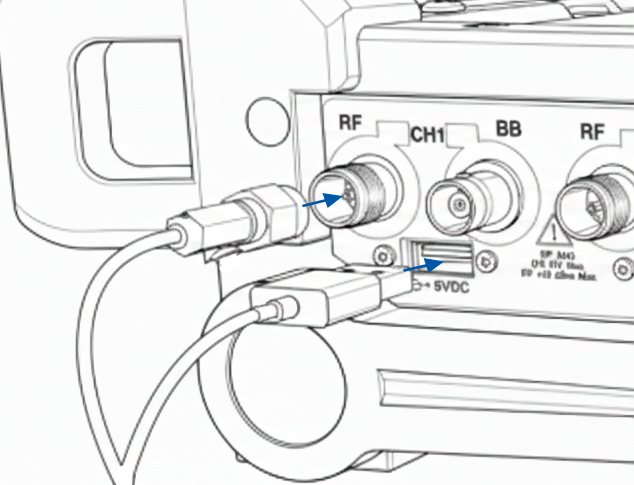

Figure 1. eLABin1 Spectrum Analyzer Connection (SMA-to-TNC Adapter)

MAIN SCREEN

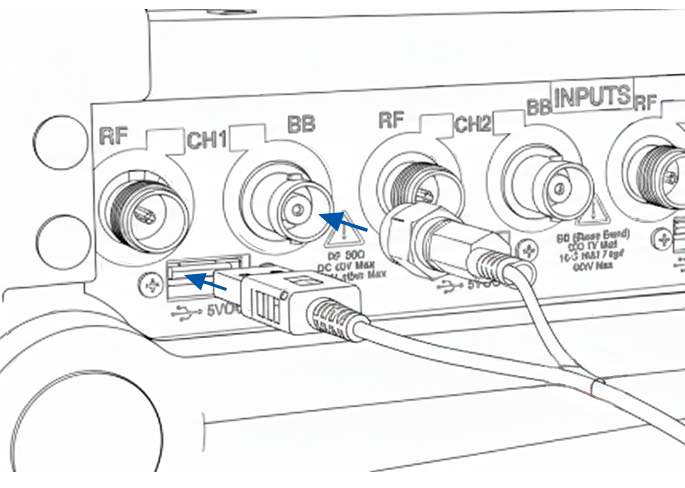

Figure 2. eLABin1 Oscilloscope Connection (SMA-to-BNC Adapter)

MAIN SCREEN

Grounding

For differential measurements, connect both probe inputs to the signal under test.

For single-ended measurements, connect one probe input to ground and the other to the signal.

Keep all ground connections as short as possible to minimize noise and improve measurement stability.
